Fuel Injector Connection 1050cc (100lb) Extended Tip 38mm EV6 Injector (set of 8)

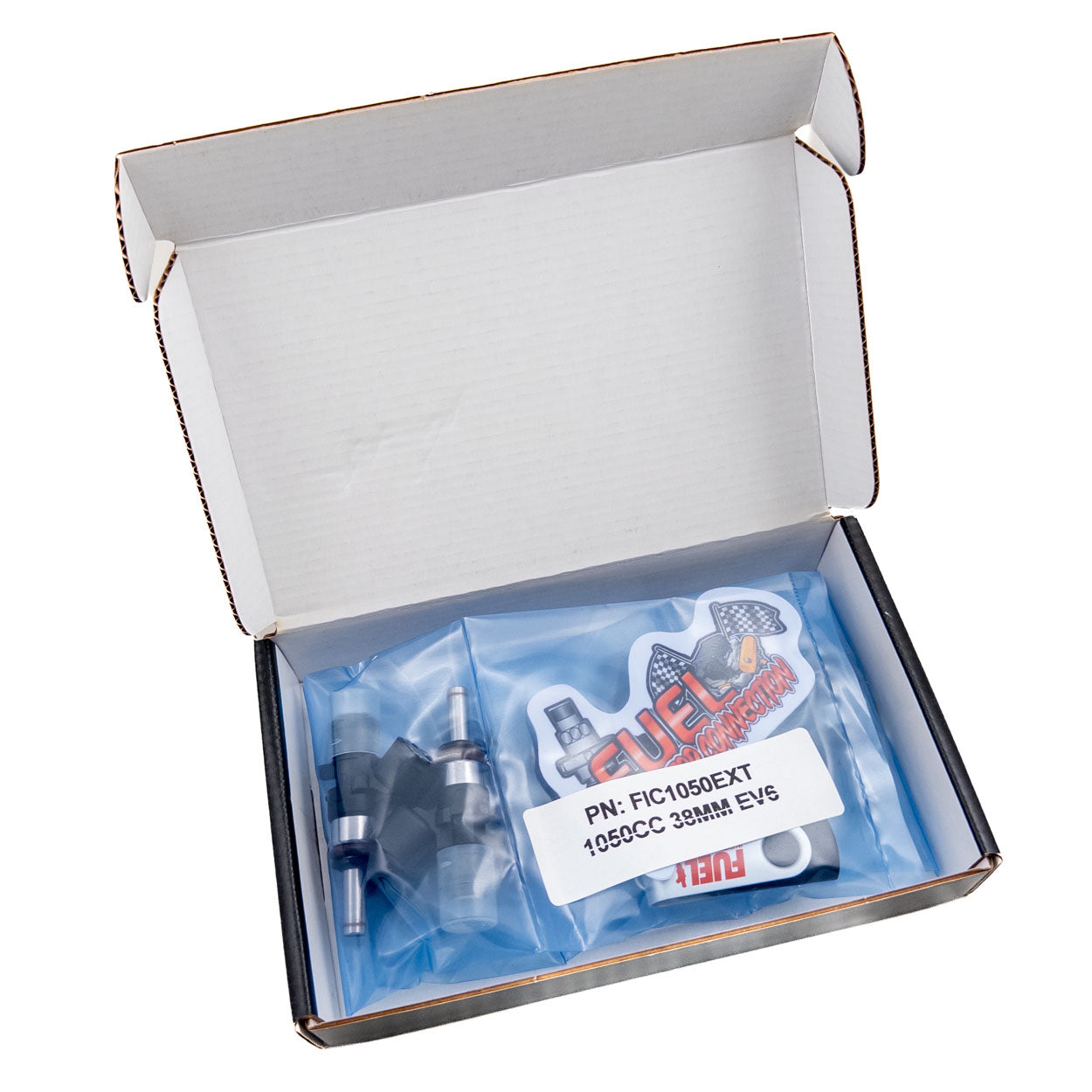

This set of 8 FUEL INJECTOR CONNECTION 1050cc/100lb high performance injectors are data matched, E85 compatible, and fit the TooHighPsi 'SC' and 'R' Port Plates! They are high-impedance, making them compatible with all fuels including E85 and M5, while delivering the most flow available in a High-Impedance injector. Each set is flow matched and comes with plug and play tuning data on a USB flash drive.

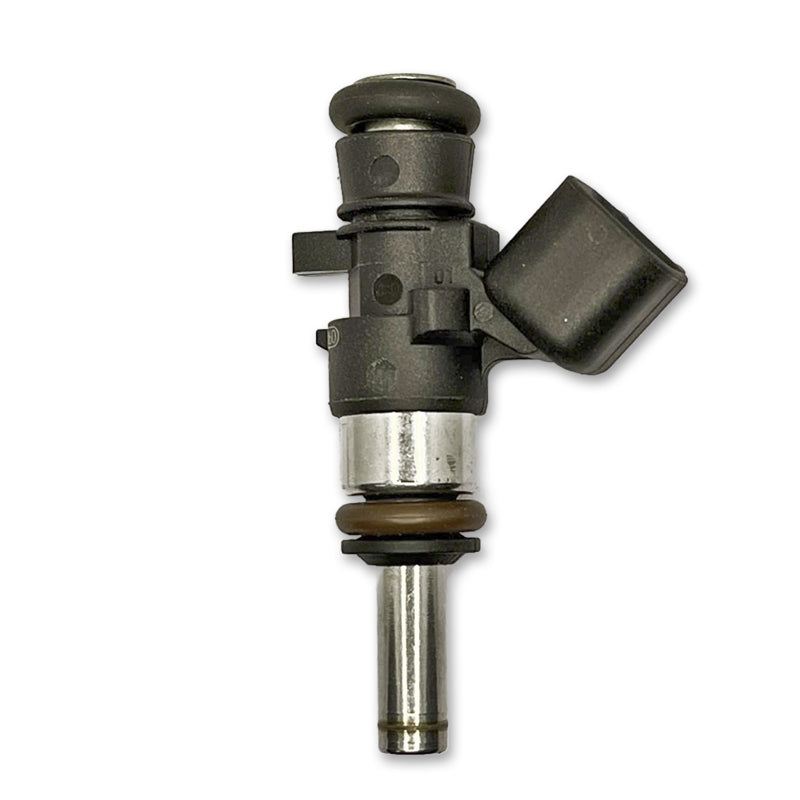

The injectors are 38mm tall 1050cc/100lb port fuel injectors with 14mm OD top and bottom O-rings with an extended tip and EV6/USCAR plug connector.
Fully tested and data matched: 1050cc @ 43.5 PSI

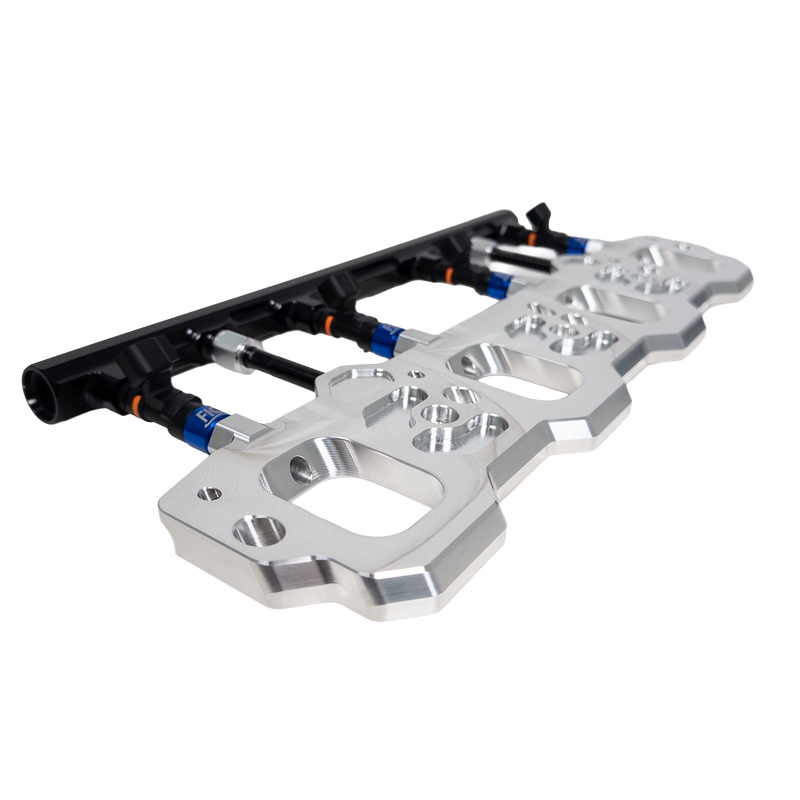

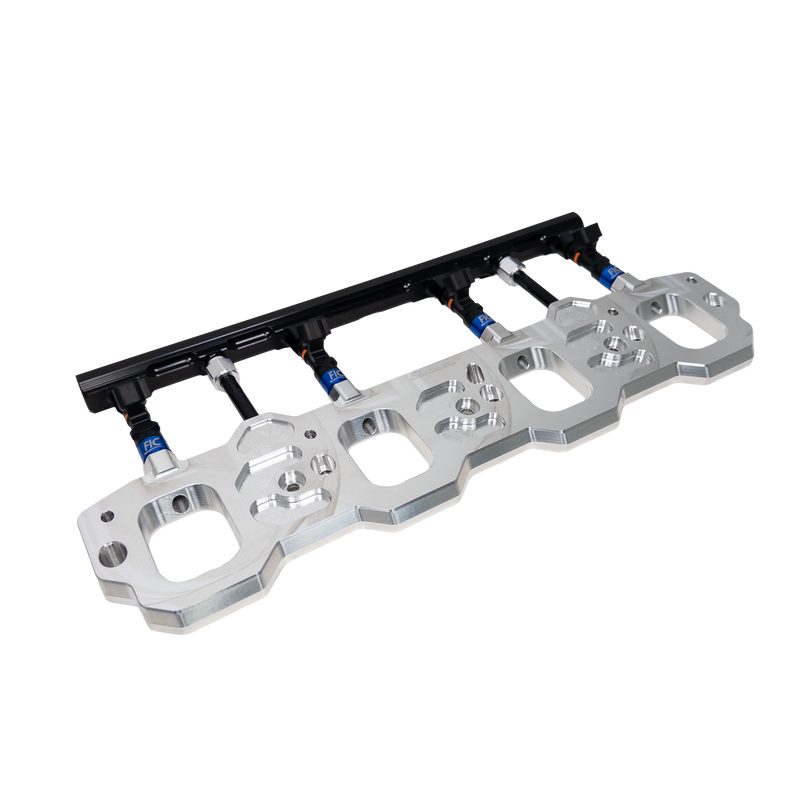

For use with TooHighPsi Engineering 'SC' or 'R' Port Plate Systems
These injectors - combined with a stock DI high side fuel system - are capable of (.85 bsfc):
LT1 - approximately 1300 WHP on E85 fuel
LT4 - approximately 1400 WHP on E85 fuel
